Cryogenic Accessories

Technifab has a variety of cryogenic equipment for all your cryogen needs. If you’d like to place an order, call us today.

Replacement Dewar Cap

Replacement Dewar Cap: Worn and damaged dewar caps diminish the performance of your liquid nitrogen dewar as well as pose safety risks.

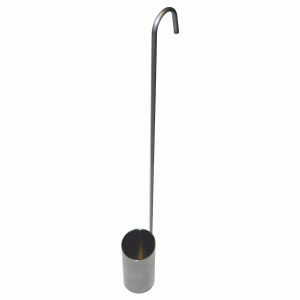

Cryogenic Dipper

Dippers: This 100 ml dipper is ideal for collecting small volumes of liquid cryogen. Constructed of stainless steel for long life and durability.

Available for TLN-005, TLN-010, TLN-025, TLN-035, TLN-050.

$57.00

Cryo Gloves

Cryo Gloves: Comfortable, breathable, lightweight, water-resistant gloves. Offer superior thermal protection, excellent dexterity, and a stay-dry lining. Not intended for immersion in cryogenic liquids.

Available in Large, XL Mid Arm Length, and Large Wrist Length.

$145.00

Roller Bases for Dewars

Roller Bases: Sturdy roller base designed to easily move our 25, 35, 50, and 90-liter dewars around your laboratory or plant.

$544.00

Face Shields

Face Shields: Protect your face and eyes while transferring liquid cryogen. High-performance thermoplastic crown w/ 9” x 14-1/2” molded propionate window.

$35.00

Withdrawal Device for Cryogenic Liquid

Withdrawal Devices: Our liquid withdrawal devices allow you to dispense liquid nitrogen from our standard lab dewars without lifting and pouring. When the device is installed, the dewar builds internal pressure, which is then used to dispense the liquid. Complete with dual safety valves, pressure gauge, and safety straps.

Available in: 10L, 25L, 35L, 50L

$598.00

Dewar Lineup

2 Liter Dewar

TLN-002

  • Capacity (liters): 2
  • Overall Height: 15.5 in (394mm)
  • Outside Diameter: 6.2 in (158mm)
  • Necktube Diameter: 1.25 in (32 mm)
  • Empty Weight: 2.6 lbs (1.6 kg)
  • Full Weight: 7.2 lbs (3.3 kg)
  • Evaporation Rate (liters/day): .29
  • Static Hold Time (days): 7
5 Liter Dewar

TLN-005

  • Capacity (liters): 5
  • Overall Height: 17 in (432mm)
  • Outside Diameter: 7.7 in (196mm)
  • Necktube Diameter: 2 in (51 mm)
  • Empty Weight: 7 lbs (3.2 kg)
  • Full Weight: 15.6 lbs (7.1 kg)
  • Evaporation Rate (liters/day): .31
  • Static Hold Time (days): 16
10 Liter Dewar

TLN-010

  • Capacity (liters): 10
  • Overall Height: 21.56 in (548 mm)
  • Outside Diameter: 11 in (279 mm)
  • Necktube Diameter: 2 in (51 mm)
  • Empty Weight: 13 lbs (5.9 kg)
  • Full Weight: 30.2 lbs (13.7 kg)
  • Evaporation Rate (liters/day): .23
  • Static Hold Time (days): 43
25 Liter Dewar

TLN-025

  • Capacity (liters): 25
  • Overall Height: 25.75 in (654 mm)
  • Outside Diameter: 16 in (406 mm)
  • Necktube Diameter: 2 in (51 mm)
  • Empty Weight: 24 lbs (10.9 kg)
  • Full Weight: 66.7 lbs (30.3 kg)
  • Evaporation Rate (liters/day): .24
  • Static Hold Time (days): 104
35 Liter Dewar

TLN-035

  • Capacity (liters): 35
  • Overall Height: 25 in (635 mm)
  • Outside Diameter: 18.25 in (464 mm)
  • Necktube Diameter: 2.5 in (64 mm)
  • Empty Weight: 33 lbs (15 kg)
  • Full Weight: 95 lbs (43 kg)
  • Evaporation Rate (liters/day): .30
  • Static Hold Time (days): 117
50 Liter Dewar

TLN-050

  • Capacity (liters): 50
  • Overall Height: 30.25 in (768 mm)
  • Outside Diameter: 18.25 in (464 mm)
  • Necktube Diameter: 2.5 in (64 mm)
  • Empty Weight: 38 lbs (17.2 kg)
  • Full Weight: 127 lbs (57.6 kg)
  • Evaporation Rate (liters/day): .41
  • Static Hold Time (days): 122

WOULD YOU LIKE TO ORDER CRYOGENIC ACCESSORIES?
